Intalok® Reveal Panel System

The Intalok® Reveal Panel (also known as the Interlocking Panel) is one of the most popular cladding systems for traditional metals such as GreenCoat steel, copper, brass, bronze, zinc, stainless steel or precoated aluminium.

VERSATILE DESIGN SOLUTIONS

The Intalok® Reveal Panel system is ideally suited to situations where traditional metals are preferred but with a requirement for a flatter appearance than standing seam type systems.

Panels can be installed horizontally, vertically or diagonally and can be manufactured in various widths / shadow gap combinations. The reveal panel is also highly effective for use as a soffit system.

Download Brochure

EXPERIENCE THE UNPARALLELED DURABILTIY OF REVEAL PANELS

Metal reveal panels are known for their high durability and resistance to weathering. They can also withstand harsh environmental conditions, including extreme temperatures, UV radiation, and moisture, without deteriorating or losing their structural integrity. The installation process is simple, with each panel seamlessly interlocking with the next through concealed fixings.

Due to their durable nature, metal reveal panels have a long lifespan. This longevity contributes to the overall sustainability of a building, as it reduces the frequency of material replacement and associated environmental impact. Metal reveal panels, especially those made from corrosion-resistant alloys, are less susceptible to corrosion. This quality ensures that the panels maintain their appearance and structural integrity over time.

CASE STUDY - AXA TRAINING CENTRE, LIVERPOOL FC TRAINING GROUND

The AXA Training Centre, located within the iconic Liverpool FC Training Ground, aimed to elevate its aesthetics while maintaining functionality and durability. The design team sought a modern, sleek appearance that would seamlessly blend with the football club’s dynamic environment.

The choice of materials was crucial in achieving the desired visual impact, and GreenCoat Reveal Panel in Anthracite Grey RAL 7011 emerged as the ideal solution. The sleek, modern appearance significantly enhanced the overall aesthetic of the facility, creating a visually appealing environment for both players and staff.

GreenCoat Reveal Panel Anthracite Grey RAL7011

CWCT Tested

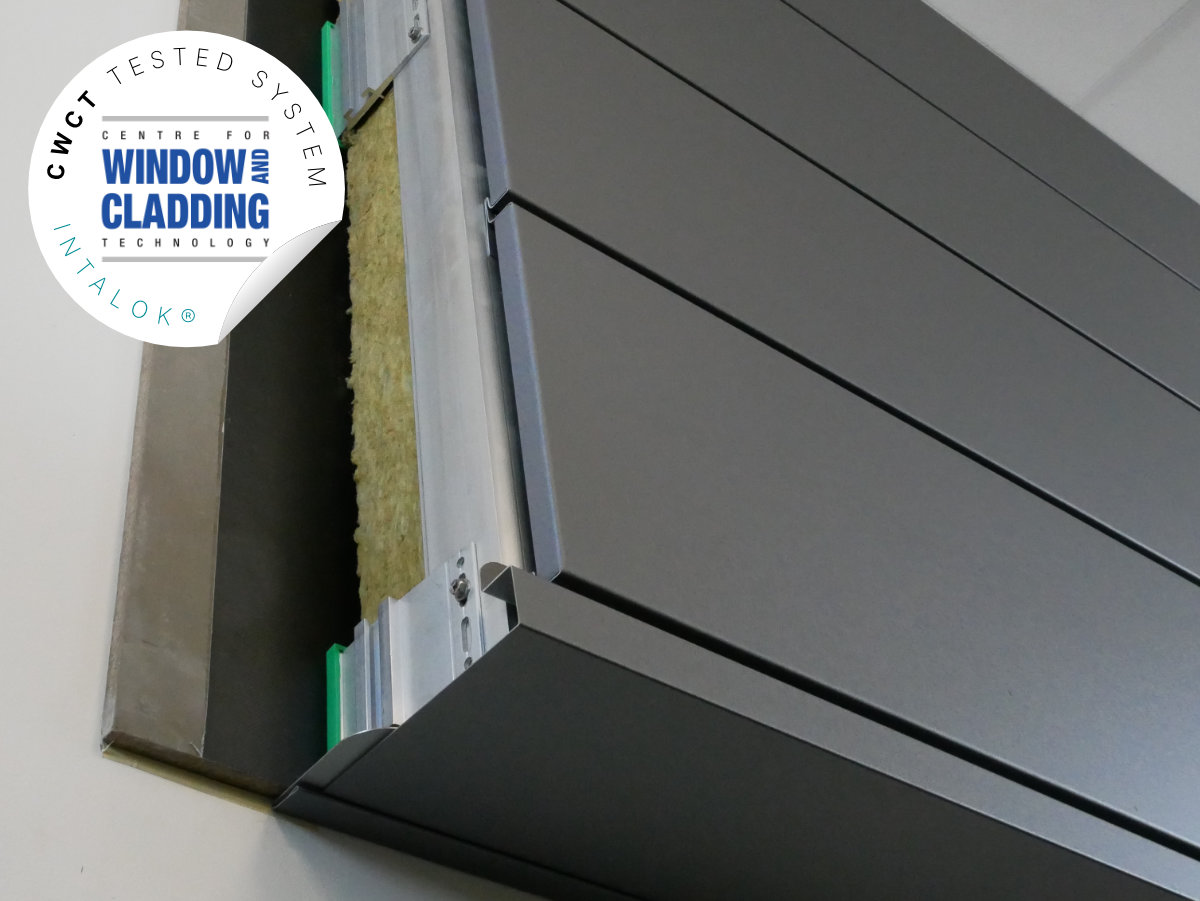

The Intalok® Reveal Panel system is available in a fully CWCT tested configuration, giving specifiers confidence in a proven system. The Centre for Window and Cladding Technology (CWCT) sets recognised industry standards for the performance of cladding systems through independent testing and guidance.

The tested Intalok® assembly represents a complete system build-up, including material, support framework, insulation and fixings, assessed together to reflect real-world performance.

The Intalok® Reveal Panel system can be specified in a range of materials and construction options to suit different project requirements. While these variations offer design flexibility, the CWCT test relates to a defined configuration. Contact us for full details of the tested construction and guidance on suitable options for your project.

AVAILABLE IN A RANGE OF COMBINATIONS

Available in a range of specifications to meet your design and functional requirements, our reveal panels offer a perfect blend of aesthetics and performance. Choose from a variety of finishes, colours, and sizes to seamlessly integrate our reveal panels into your design vision. Our team of experts are dedicated to guiding you through the selection process, providing valuable insights, and offering solutions that align with your project goals.

Code	Module	Face	Shadow Gap	Length
RP-300/0 (ex zinc)	300mm	300mm	0mm	Up to 4000mm
RP-297/3	300mm	297mm	3mm	Up to 4000mm
RP-290/10	300mm	290mm	10mm	Up to 4000mm
RP-280/20	300mm	280mm	20mm	Up to 4000mm
